74 Series Balance


Ordering Information

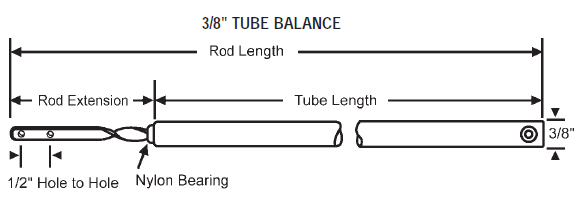

  • Measure metal tube length (Do not include nylon bearing).
  • Measure spiral rod length. (Make sure rod is flush with screw hole end of tube before measuring.)
  • Identify the color of the bearing (e.g., white, red or blue) and select our corresponding part number from the chart below.
  • To identify the appropriate carrier or shoe to be attached and other related accessories, see PDF catalog.
SKU: N/A Categories: ,


General Information

  • White, red and blue bearings are for sashes weighing up to 22 lbs; green bearings are for sashes weighing up to 26 lbs. Consult your sales representative for ordering information.
  • The appropriate tensioning tools are 70-515 and 70-516.

This series always comes with a shoe or bracket attached. Some customers confuse this series with our 83 series tilt balances.

Please order carefully as window balances are custom made and are non-returnable. In most cases, these balances take us about 1 week to receive before shipping to you.
