70 Series Balances


Ordering Information

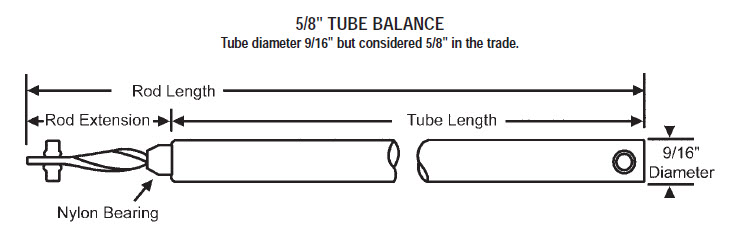

  1. Measure metal tube length. (Do not include nylon bearing.)
  2. Measure spiral rod length. (Make sure rod is flush with screw hole end of tube before measuring.)

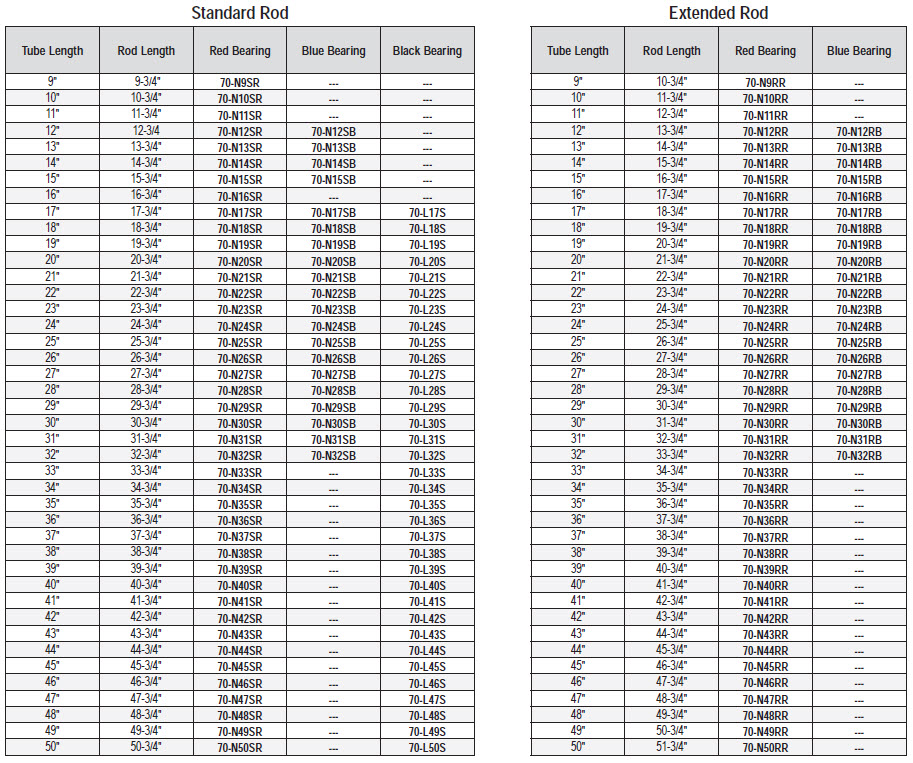

  3. Identify the color of the bearing (e.g., white, red, blue, or black) and select our corresponding part number from the chart below.
  4. To identify any attaching brackets or accessories used with your balance, refer to the links below.

Note: Brackets and accessories must be ordered separately.

Bulk Discount

Discount will by reflected in your cart.

Red Nylon Bearing
Qty 1-6: $9.95 each
Qty 7-24: $7.95 each
Qty 25+ Call to order.
Blue Nylon Bearing
Qty 1-6: $9.95 each
Qty 7-24: $7.95 each
Qty 25+ Call to order.

SKU: N/A Categories: ,

Product Description

General Information

  1. Maximum tube balance length available is 60″. Call for any length over 50″.
  2. Red and blue bearings are for sashes weighing up to 30 lbs; the black bearing with nyclad tip is for sashes weighing up to 40 lbs. Please consult your sales representative for special ordering information.

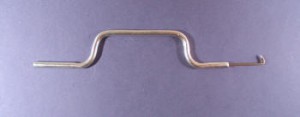

  3. The appropriate tensioning tools are 70-515 and 70-516 as shown below

Please order carefully as window balances are custom made and are non-returnable. In most cases, these balances take us about 1 week to receive before shipping to you.
